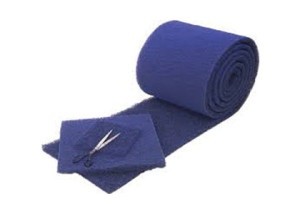

Roll Media

Customize Your Own Heating and Cooling System Filters



Service Rolls

    • Available in three types of media
    • Spun Glass : This is a rigid, nominal 3/8” thick, dry spun glass. It is typically used to make rigid pads for use in room unit air conditioners. Designed to use without a frame. It is untreated, therefore will not harm the plastic frequently used in the construction of room units.
    • Foam : A rugged polyurethane foam that is designed for use in room unit air conditioners and in pad-holding frames. It is washable and will withstand repeated cleaning with mild soap and water. Available in ¼”, ½”, 1”, and 2” thicknesses.
    • Aluminum : An expanded aluminum mesh of the type used in room unit air conditioners. ¼” thick dry filter media that requires the addition of a dust adhesive for effective filtration

    Permaire Rolls

    • Completely synthetic, self-supporting and washable
    • All the benefits of organic media, but a longer service life, odor free, and better structural integrity
    • Made of synthetic fibers and coated with a special resin, then baked together at a high temperature. This process ensures that the media is tough, springy, thoroughly bonded, and nearly rigid.
    • Passive electrostatic
    • Cut to fit

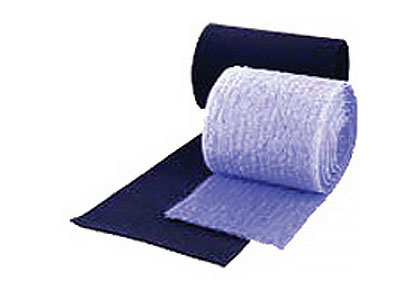

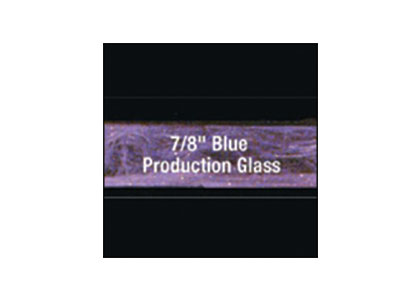

    Spun Glass – 7/8” Blue Production Glass

    • Nominal 7/8” adhesive-treated spun glass.
    • Designed for residential and light industrial/commercial filtration

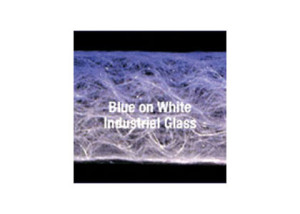

    Blue on White Industrial Glass

    • Nominal 1” and 2” adhesive-treated spun glass
    • Designed for industrial/commercial filtration with fairly heavy dirt loads

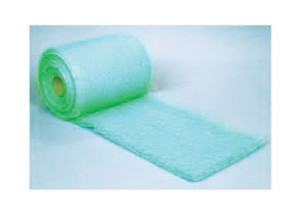

    Series 330 Green Paint Arrestor

    • Economy grade fiberglass media
    • Made with 15 grams of fiberglass per square foot
    • Holds more paint than any other economy fiberglass media due to its skin exit side
    • Available in 300 foot rolls and pads
    • Made from air-laid fiberglass forming a 2.5” thickness
    • Paint particles collide with the fiberglass fibers and are removed from the airstream

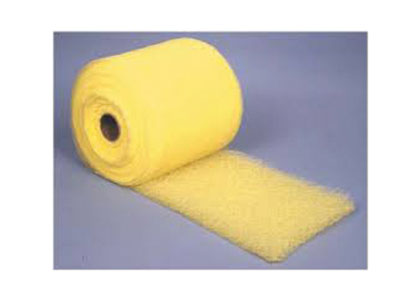

    Series 331 Yellow Paint Arrestor

    • Constructed of high quality fiberglass media that is 22 grams per square foot
    • Available in 300 foot rolls and pads
    • Made from air-laid fiberglass forming a 2.5” thickness
    • The exit side has a skin backing for added efficiency
    • Paint particles collide with the fiberglass fibers and are removed from the airstream

    Series 331 Yellow Paint Arrestor

    • Constructed of high quality fiberglass media that is 22 grams per square foot
    • Available in 300 foot rolls and pads
    • Made from air-laid fiberglass forming a 2.5” thickness
    • The exit side has a skin backing for added efficiency
    • Paint particles collide with the fiberglass fibers and are removed from the airstream



    3/8″ A/C Media

    • Nominal 3/8” untreated (no adhesive) blue on white spun glass
    • Makes rigid pads for use in room air conditioning units

    Polyester Synthetic Fiber

    • Extremely resilient and will withstand direct moisture
    • Makes an excellent prefilter for high efficiency filters
    • Offers a high arrestance and dust holding capacity
    • Available in ½” (BT-1 media), 1” (BT-2 media) and 2” (BT-3 media) depths



    ST 55

    • Nominal ½” tackified polyester synthetic fiber
    • Light green and white with green on the air exit side

    Pre-T

    • Extremely rugged polyester synthetic fiber
    • Designed for repeated cleaning by washing or vacuuming
    • Dry, untreated
    • Nominal ½” thickness only
    • Red and purple with purple on the air exit side

    SAR 1 Roll

    • First layer catches the larger particles and the second layer catches the smaller particles
    • 100% of the second layer are tackified
    • ½” loft

    SA 600 G 10

    • Highest level of protection against paint damaging particles
    • Able to withstand high temperature applications, up to 140 ° Celsius
    • Does not discolor or break down in the heated booth
    • 1” depth
    • High dust holding capacity
    • Normal service life is 10-18 months
    • Available in bulk rolls and cut pads



    POYLESTER SYNTHETIC FIBER SERIES 225, 325, 425

    • Series 225 is nominal 1” dual denier tackified media
    • Series 325 is nominal 1-1/2” three denier tackified
    • Series 425 is nominal 1-1/2” four denier tackified

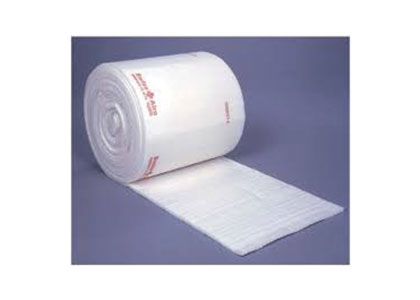

    MATRIX ROLL

    • Heady duty commercial/industrial grade
    • Can be cut to fit
    • 100% polyester fibers
    • Can be washed or vacuumed
    • Odorless
    • Water resistant
    • Suitable for swamp coolers

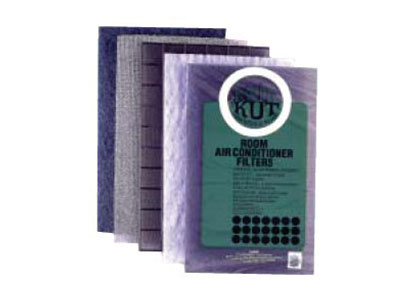

    KWIK KUTS

    • 15” x 24” pads of filter media
    • Easy to cut to fit any window or wall unit
    • Offered in the spun glass, foam and aluminum media

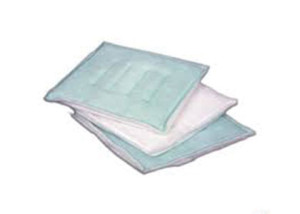

    Hammock Pads

    • Polyester synthetic fiber media
    • Available in 1” spun glass media
    • Typically used for Lennox * ( Lennox is a brand name) type furnaces
    • UL Class 2 fire rated

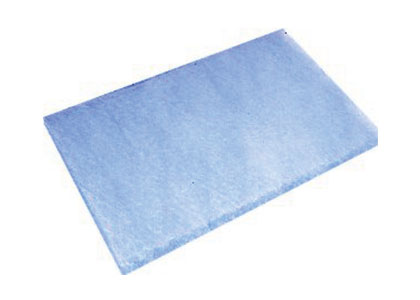

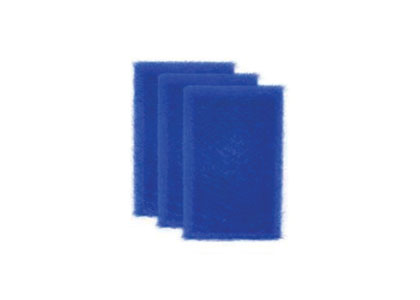

    Permaire Pads

    • Completely synthetic, self-supporting and washable
    • All the benefits of organic media, but a longer service life, odor free, and better structural integrity
    • Made of synthetic fibers and coated with a special resin, then baked together at a high temperature. This process ensures that the media is tough, springy, thoroughly bonded, and nearly rigid.
    • Passive electrostatic
    • Cut to fit
    • Due to it’s natural rigidity, a pad can replace almost any ½”, 1”, or 2” framed panel filter
